Retained Technologies
KH (Kumkang Hybrid) MBR

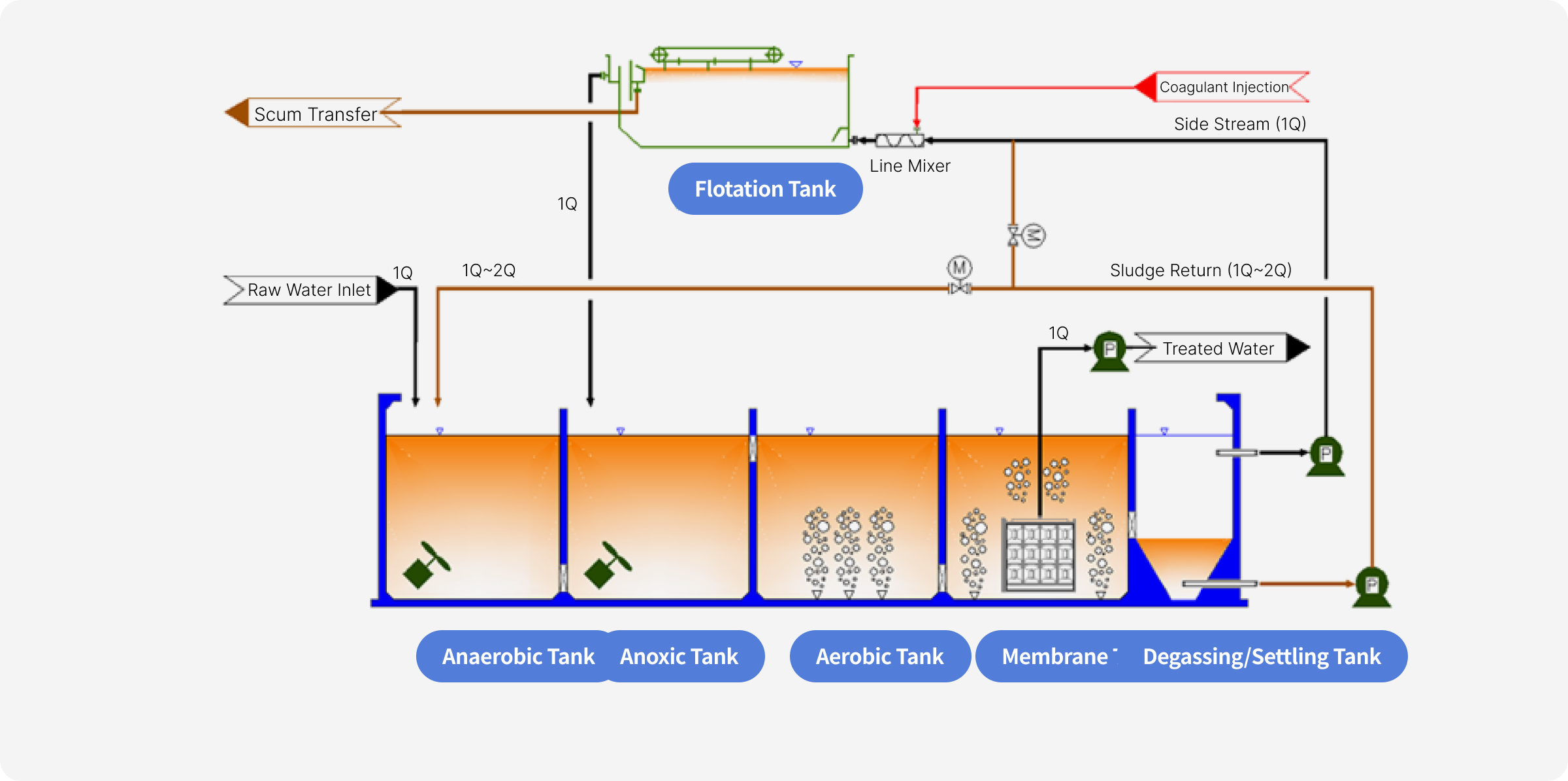

An advanced treatment process that combines the MBR process with a dissolved air flotation system to treat various organic substances, suspended solids, nitrogen, phosphorus, and more contained in raw water
By removing Oil, SMP, EPS, etc. in the dissolved air flotation process, membrane permeability is improved,
membrane life is extended, and total phosphorus (T-P) can be treated stably—a compact, latest upgrade technology

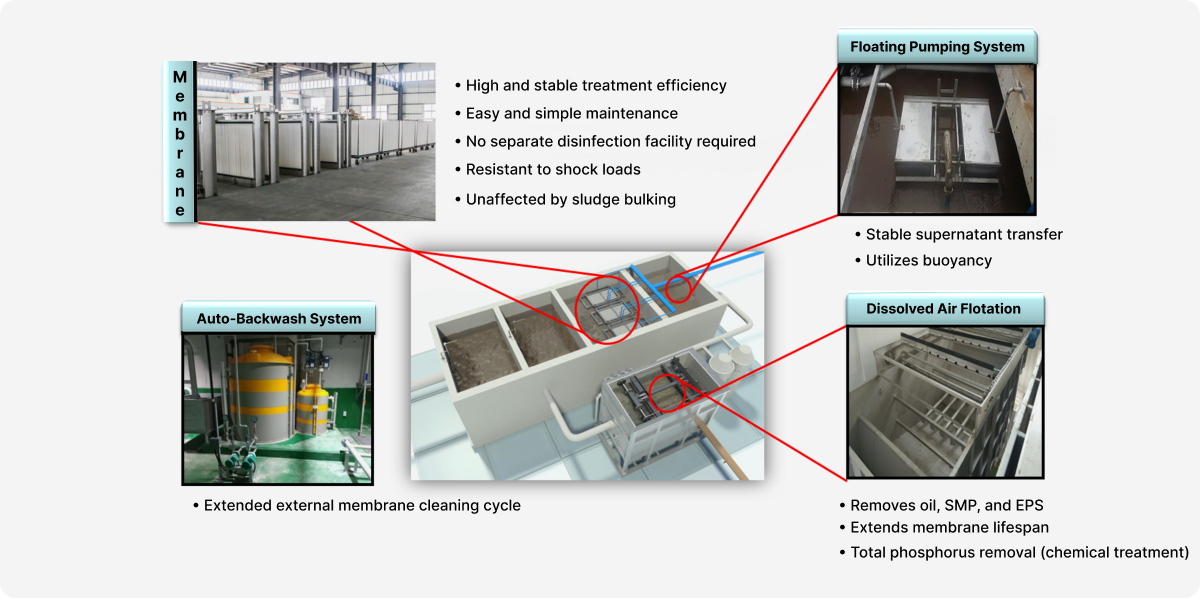

Detailed Technical Contents of the KHMBR Process
Features
- Technology that maximizes the stability of nitrogen and phosphorus treatment and ease of operation (total phosphorus 0.2 mg/L or less)
- Removes polymer substances (SMP, EPS, etc.) that cause membrane fouling in the dissolved air flotation tank to improve membrane FLUX
- Technology that improves membrane permeability to reduce initial investment and maintenance costs
- Compact site layout with a single process
- Reduces excess sludge volume to cut costs of subsequent dewatering processes
